Key Features

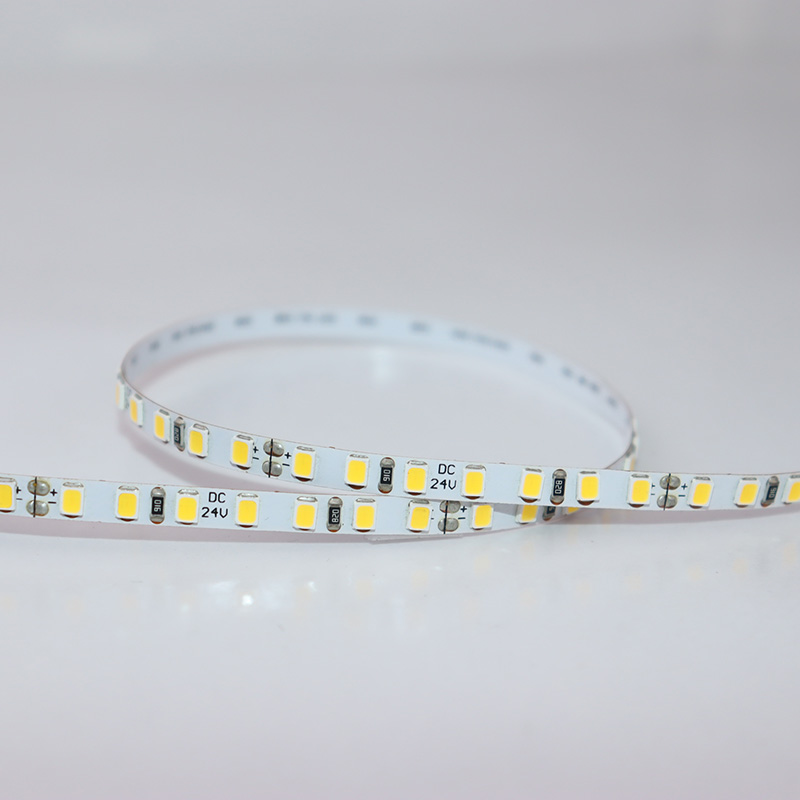

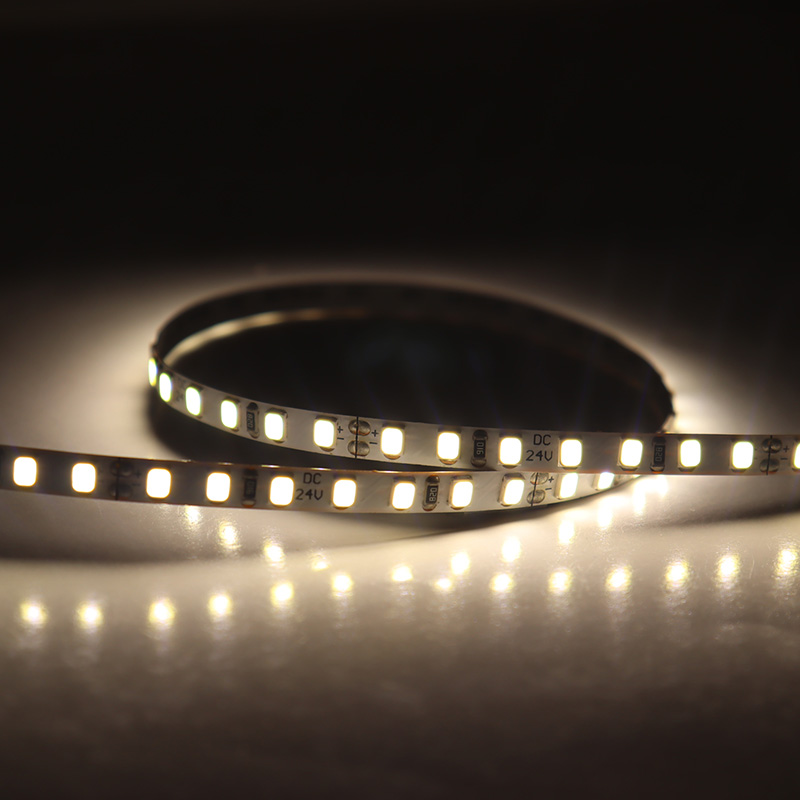

1.24V constant voltage, using a small size high-quality 2016 LED. High brightness, low light decay;
2. Ultra-narrow product design, the product is only 3-6mm wide, suitable for occasions with small installation space, such as glass countertops, mirror lights, etc.

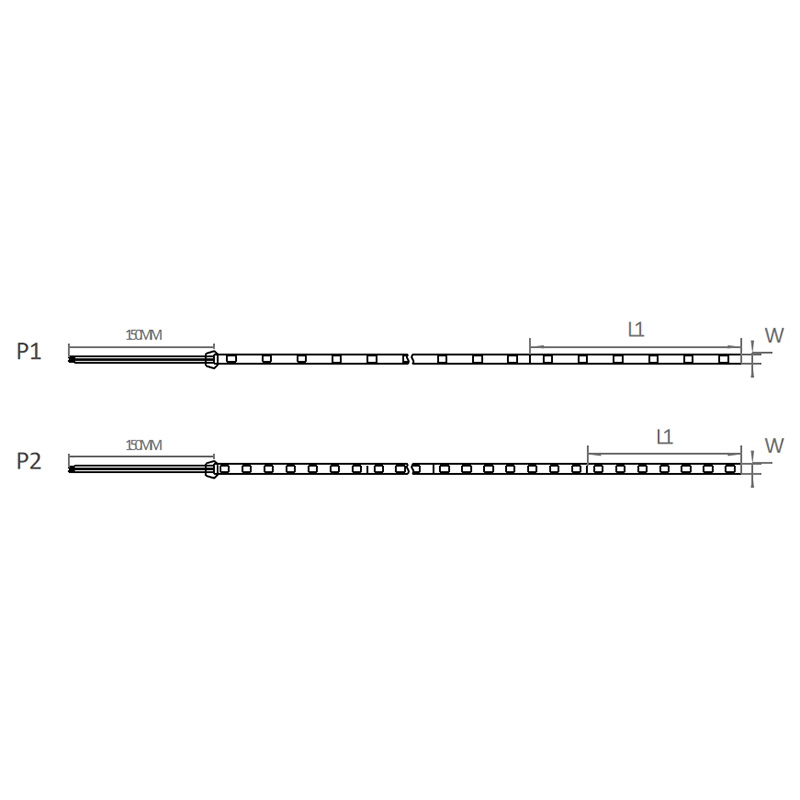

MODEL NO. | LED COLOUR | LUMEN/M | WATT/M | CUTTING UNIT | WIDTH | LENGTH | MAX LENGTH | IP RATING |
KVJ2456WW~CW-W3-5M | WW~CW | 400~500 | 3.84W | P2: 125mm/7LEDS | 3mm | 5M | 5M | IP20、IP44、IP66 IP67、IP68 |
KVJ2470WW~CW-W4-5M | WW~CW | 500~600 | 4.8W | P2: 100mm/7LEDS | 4mm | 5M | 8M |
IP20、IP44、IP66 IP67、IP68 |
KVJ24112WW~CW-W3-5M | WW~CW | 800~1000 | 7.68W | P2: 62.5mm/7LEDS | 3mm | 5M | 3M |
IP20、IP44、IP66 IP67、IP68 |
KVJ24140WW~CW-W4-5M | WW~CW | 1100~1200 | 9.6W | P2: 50mm/7LEDS | 4mm | 5M | 5M |
IP20、IP44、IP66 IP67、IP68 |
KVJ24168WW~CW-W4-5M | WW~CW | 1200~1400 | 11.52W | P2: 41.7mm/7LEDS | 4mm | 5M | 4M |
IP20、IP44、IP66 IP67、IP68 |
KVJ24180WW~CW-W4-5M | WW~CW | 1300~1500 | 14.4W | P1: 33.3mm/6LEDS | 4mm | 5M | 3M |
IP20、IP44、IP66 IP67、IP68 |
KVJ24196WW~CW-W4-5M | WW~CW | 1400~1600 | 13.44W | P2: 35.7mm/7LEDS | 4mm | 5M | 3M |
IP20、IP44、IP66 IP67、IP68 |
KVJ24210WW~CW-W4-5M | WW~CW | 1500~1700 | 14.4W | P2: 33.3mm/7LEDS | 4mm | 5M | 2M |
IP20、IP44、IP66 IP67、IP68 |
KVJ24238WW~CW-W4-5M | WW~CW | 1700~1900 | 16.32W | P2: 29.41mm/7LEDS | 4mm | 5M | 2M |
IP20、IP44、IP66 IP67、IP68 |
