Key Features

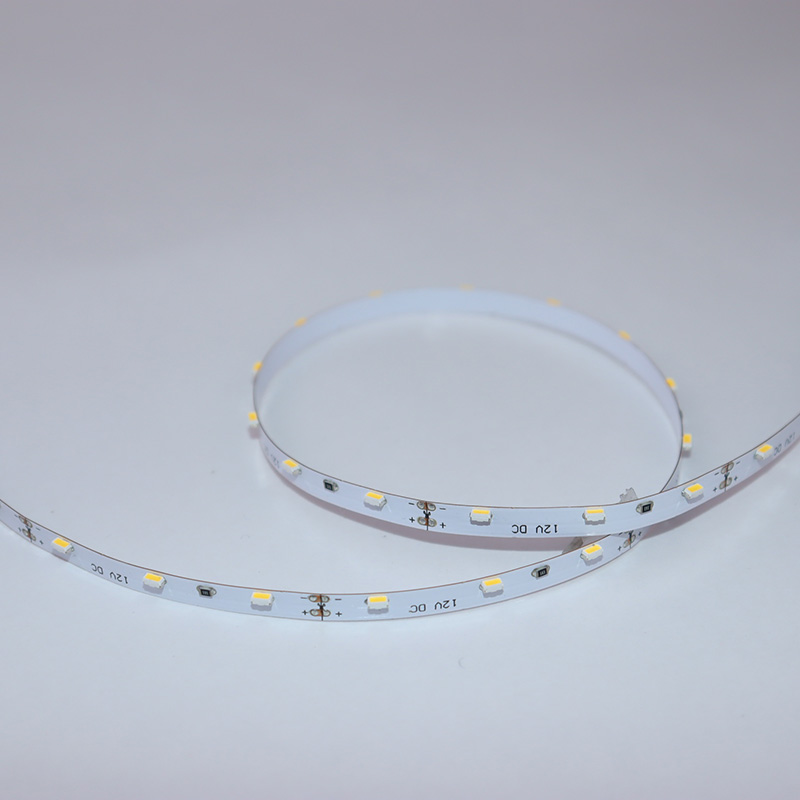

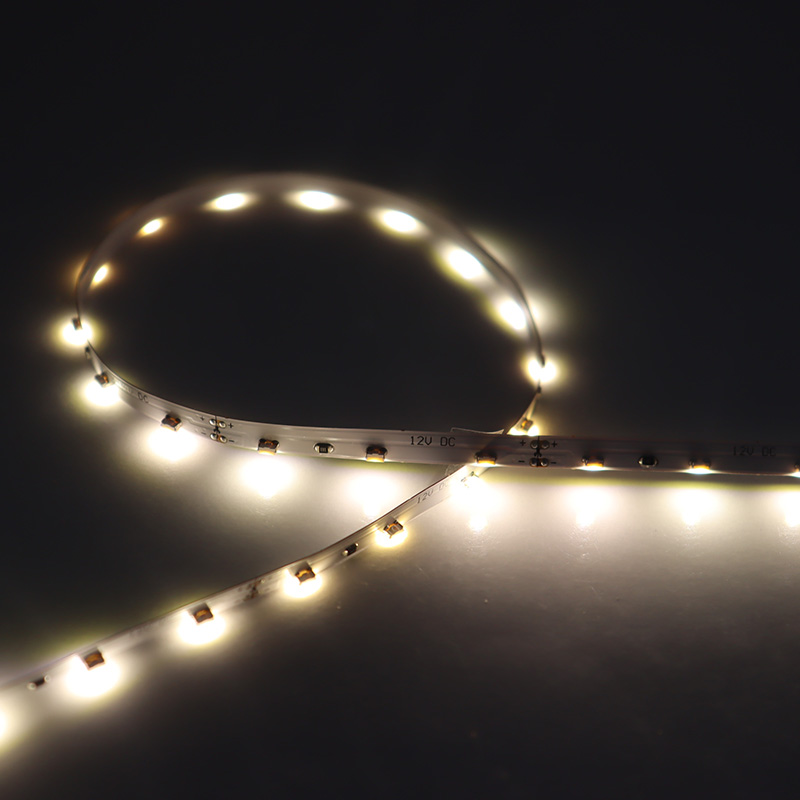

12V constant voltage, using side view LED, special emitted light angle;
suitable for the occations that the mounting surface is perpendicular to the illuminated face ,and it also fit many cases with edge
-lit purpse lighting.
MODEL NO. | LED COLOUR | LUMEN/M | WATT/M | CUTTING UNIT | WIDTH | LENGTH | MAX LENGTH | IP RATING |
KVE1260WW~CW-W4/6-5M | WW~CW | 400~500 | 4.8W | 50mm/3LEDS | 4/6mm | 5M | 5M/8M | IP20、IP44、IP66 IP67、IP68 |
KVE12120WW~CW-W4/6-5M | WW~CW | 900~1100 | 9.6W | 25mm/3LEDS | 4/6mm | 5M | 3M/5M |
IP20、IP44、IP66 IP67、IP68 |
KVE12150WW~CW-W4/6-5M | WW~CW | 1100~1300 | 12W | 20mm/3LEDS | 4/6mm | 5M | 2M/3M |
IP20、IP44、IP66 IP67、IP68 |
