Key Features

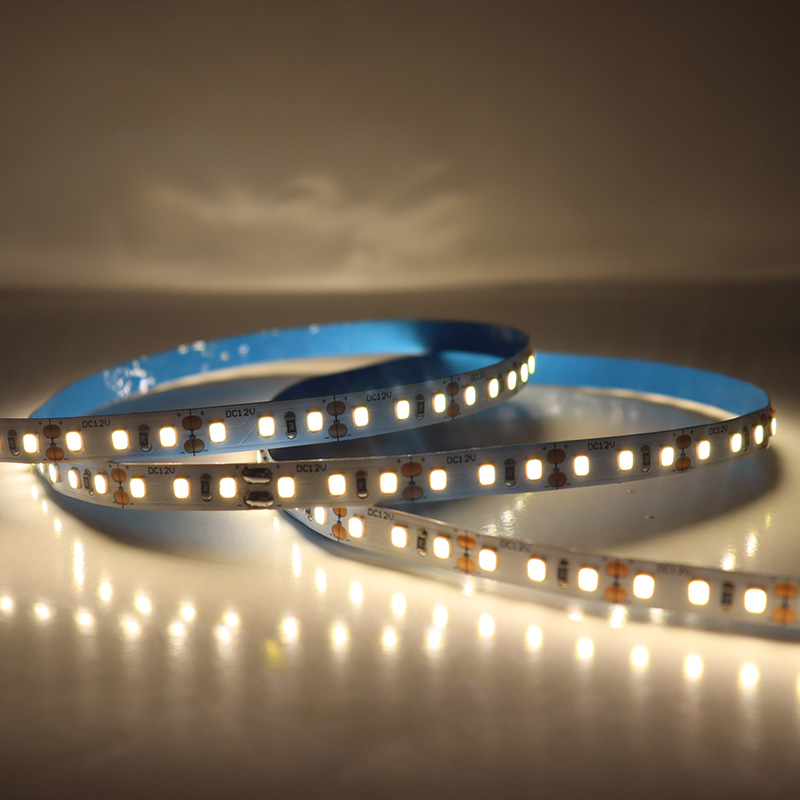

12V constant voltage,Tough lead frame is adopted to overcome the problem that the original 2835 lamp bead is easy to break, excellent alternative to 5050 sized LED;high cost -effective;
Ultra-narrow product design, the product is only 4-6mm wide, suitable for occasions with small installation space, such as glass
countertops, mirror lights, etc.

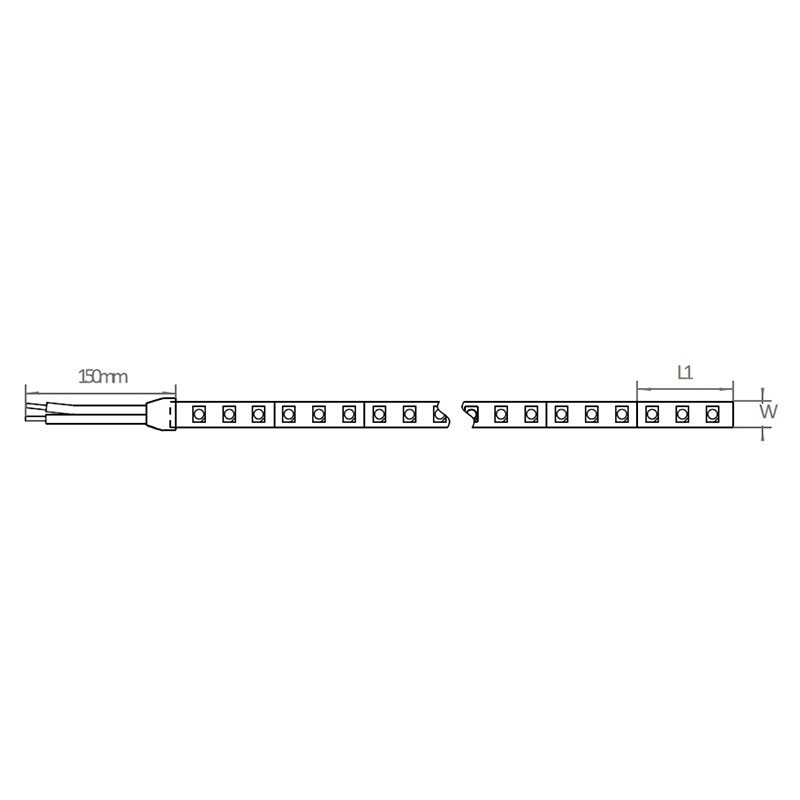

MODEL NO. | LED COLOUR | LUMEN/M | WATT/M | CUTTING UNIT | WIDTH | LENGTH | MAX LENGTH | IP RATING |
KVC1230WW~CW/CW-W6-5M | WW-CW | 200~240 | 2.4W | 100mm/3LEDS | 6mm | 5M | 10M | IP20、IP44、IP66 IP67、IP68 |
KVC1260WW~CW-W4/5/6-5M | WW-CW | 450~550 | 4.8W | 50mm/3LEDS | 4/5/6mm | 5M | 4M/5M/6M |
IP20、IP44、IP66 IP67、IP68 |
KVC12120WW~CW-W4/5/6-5M | WW-CW | 800~1000 | 9.6W | 25mm/3LEDS | 4/5/6mm | 5M | 3M/4M/5M |
IP20、IP44、IP66 IP67、IP68 |
KVC12180WW~CW-W4/5/6-5M | WW-CW | 1200~1400 | 14.4W | 16.7mm/3LEDS | 4/5/6mm | 5M | 3M/4M/5M |
IP20、IP44、IP66 IP67、IP68 |
