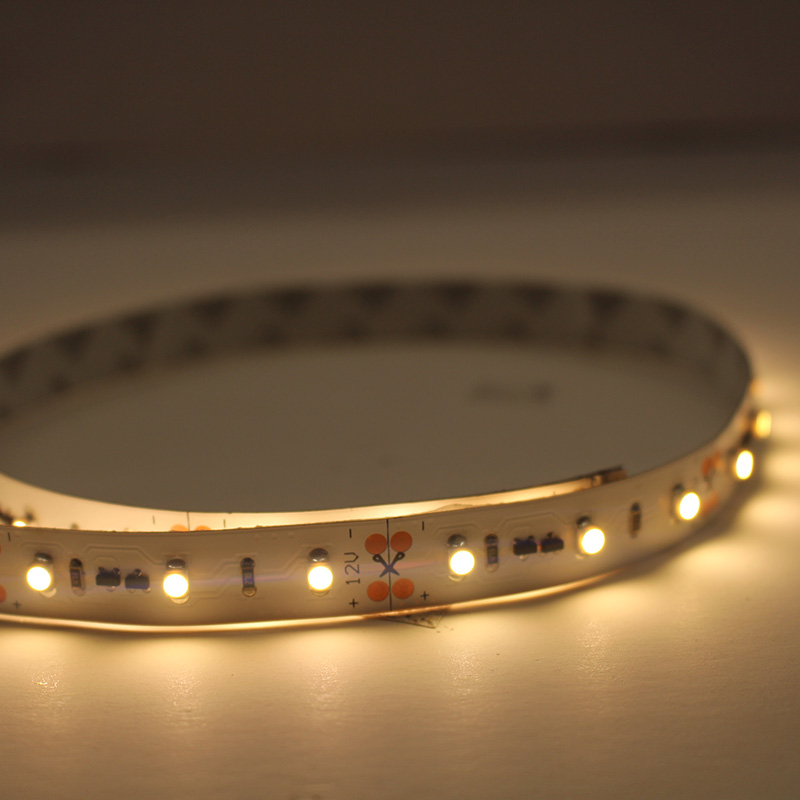

HIGH RELIABILITY FLEXIBLE RIBBON LIGHTS

12V CONSTANT CURRENT, 2835 SINGLE COLOR LEDS

Key Features

12V constant current,Using high quality LED with large size chips, high brightness and low light decay;

Adopted the special current stabilizing chips, with special designed circuits, every LED can produce uniformed light output, that overcomes the voltage drop problems which are common in the traditional strips (common strips’ LED brightness is getting down with the length increased), and at the same time raise significantly the linkable lengths of the strips, in addition that reduce the impact on the LEDs brought by the power supply voltage, and increase the LED lifetime;

PCBs are specially designed and made with thicker copper, with good conduct ability to reduce voltage drop significantly, also with better heat dissipation to reduce the light decay;

Combined with various profiles and waterproof methods, the strips are widely used in the building and landscape lighting, engineering furnishing, museum, advertising/sign boards, party, booth decoration, hotel and entertainment areas,etc.that require high quality and high uniform light performance.


Parameter

MODEL NO.

LED COLOUR

LUMEN/M

WATT/M

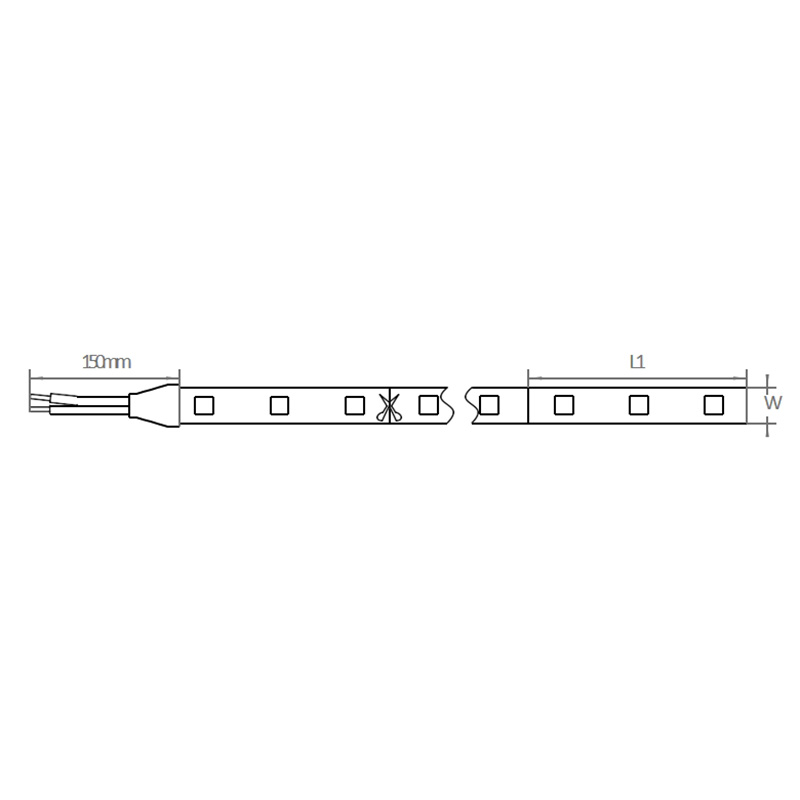

CUTTING UNIT

WIDTH

LENGTH

MAX LENGTH

IP RATING

KCC1230WW~CW-W10-5M

WW~CW

300~400

2.4W

100mm/3LEDS

10mm

5M

40M

IP20IP44IP66 IP67IP68

KCC1260WW~CW-W12-5M

WW~CW

500~600

4.8W

50mm/3LEDS

12mm

5M

20M

IP20IP44IP66 IP67IP68

KCC12120WW~CW-W12-5M

WW~CW

1000~1200

9.6W

25mm/3LEDS

12mm

5M

10M

IP20IP44IP66 IP67IP68
