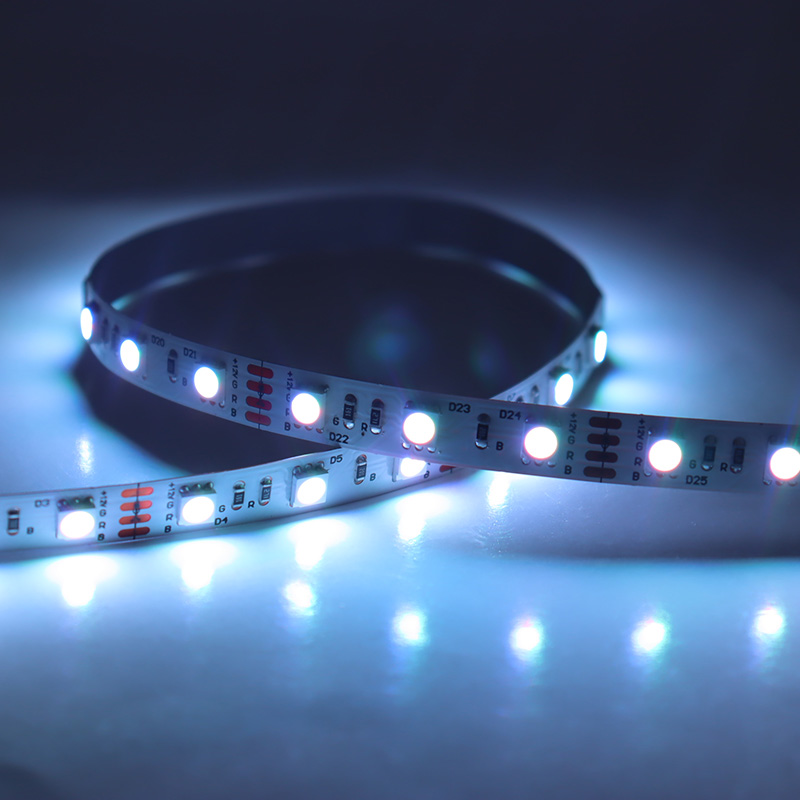

RGB STANDARD FLEXIBLE RIBBON LIGHTS

12V CONSTANT VOLTAGE, 5050 RGB

Key Features

12V constant voltage,Using high quality LED,with big size chip, high brightness and low light decay. It overcomes the common dead-chip problems that can be found in competitors’ LEDs (especially red color);

PCBs are specially designed and made with thicker copper, with good conduct ability to reduce voltage drop significantly, also

with better heat dissipation to reduce the quick light decay caused by the strong heat;

Combined with various profiles and waterproof methods, the light strips are widely used in the building and landscape, engineering furnishing, advertising /sign boards, and also fit for some extreme weather (-30℃ to 70℃ ) conditions which require high quality and high reliability light performance, that can reduce the maintenance costs significantly.


Parameter

MODEL NO.

LED COLOUR

LUMEN/M

WATT/M

CUTTING UNIT

WIDTH

LENGTH

MAX LENGTH

IP RATING

KVG1230RGB-W10-5M

RGB

240~360

6W

100mm/3LEDS

10mm

5M

6M

IP20IP44IP66 IP67IP68

KVG1248RGB-W10-5M

RGB

400~500

9.6W

62.5mm/3LEDS

10mm

5M

5M

IP20IP44IP66 IP67IP68

KVG1260RGB-W10-5M

RGB

500~600

12W

50mm/3LEDS

10mm

5M

3M

IP20IP44IP66 IP67IP68
