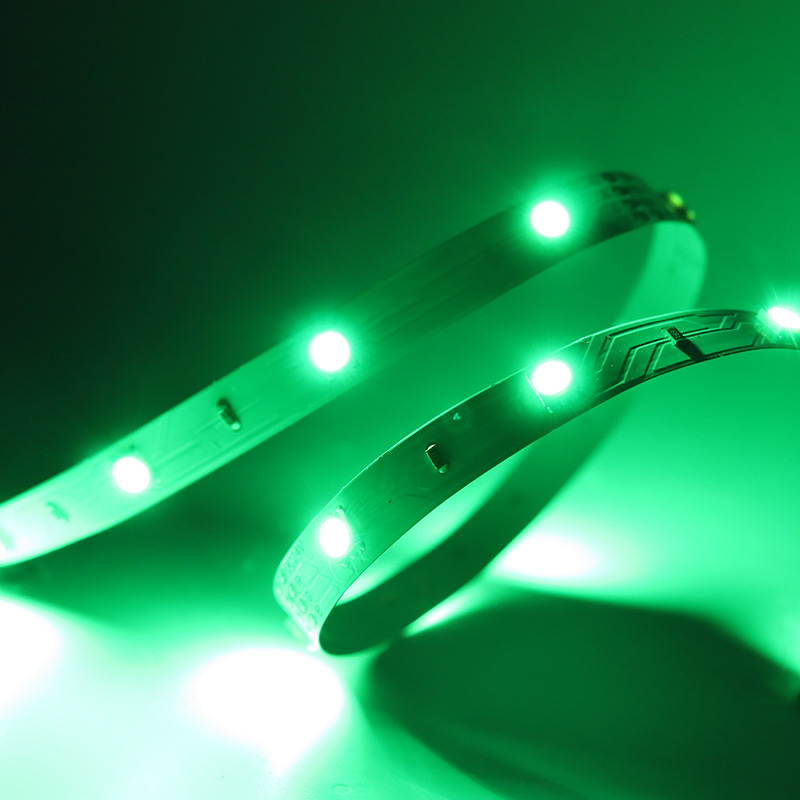

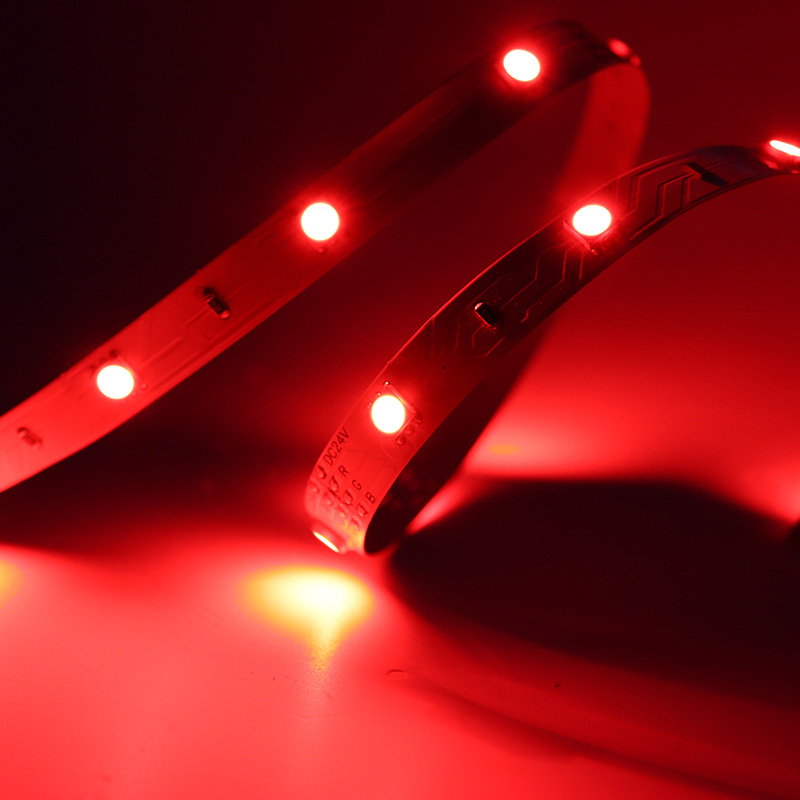

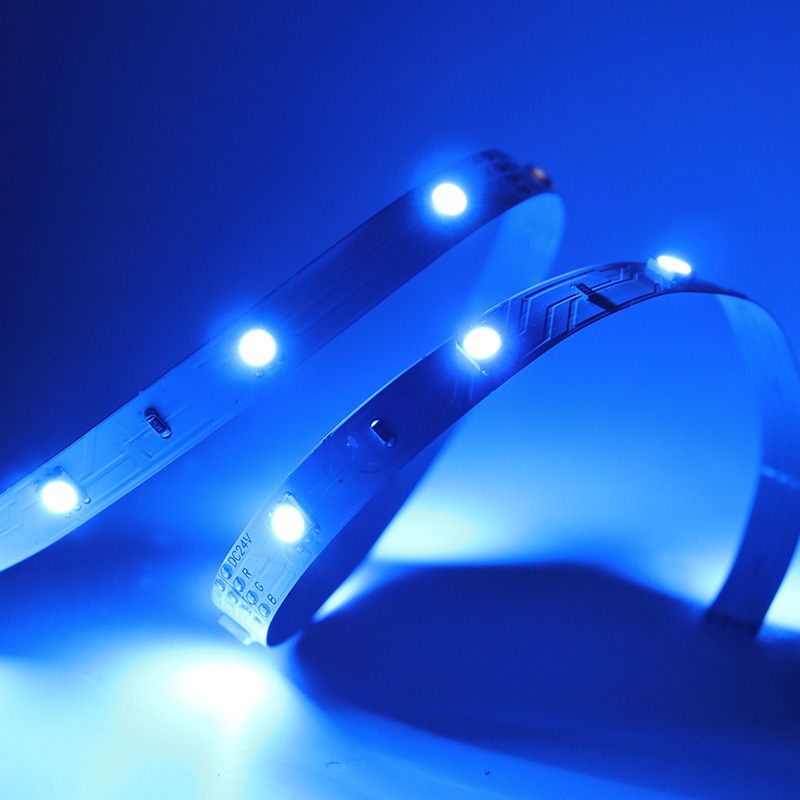

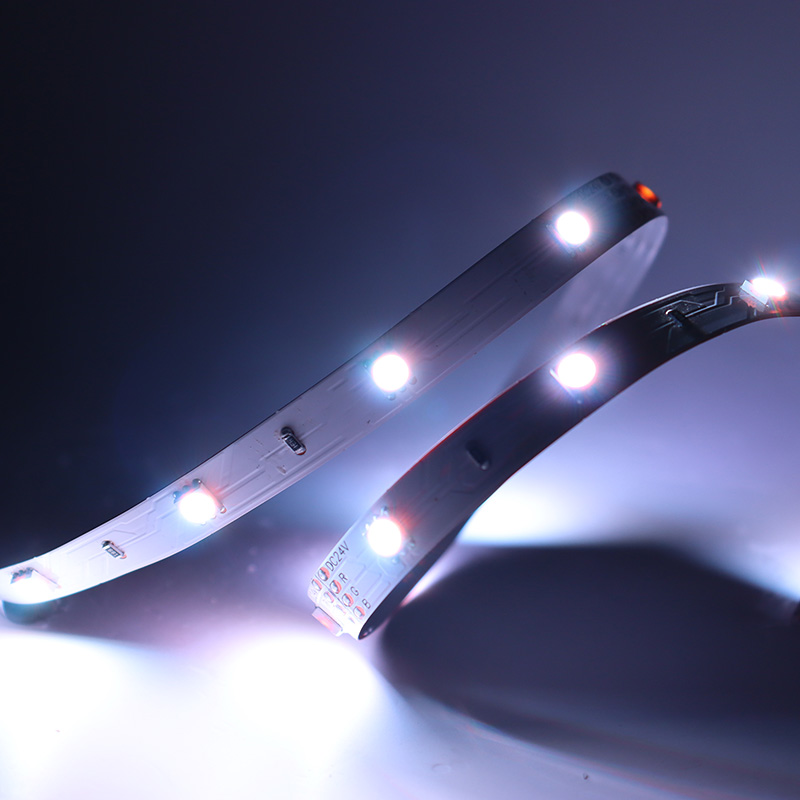

RGB STANDARD FLEXIBLE RIBBON LIGHTS

24V CONSTANT VOLTAGE, 5050 RGB

Key Features

24V constant voltage,Using high quality LED, with big size chip, high brightness, low light decay. It overcomes the common dead- chip problems that can be found in competitors’ LEDs (especially red color);

PCBs are specially designed and made with thicker copper, with good conduct ability to reduce voltage drop significantly, also with better heat dissipation to reduce the quick light decay caused by the strong heat;

Combined with various profiles and waterproof methods, the light strips are widely used in the building and landscape, engineering furnishing, advertising /sign boards, and also fit for some extreme weather (-30℃ to 70℃ ) conditions which require

high quality and high reliability light performance, that can reduce the maintenance costs significantly.


Parameter

MODEL NO.

LED COLOUR

LUMEN/M

WATT/M

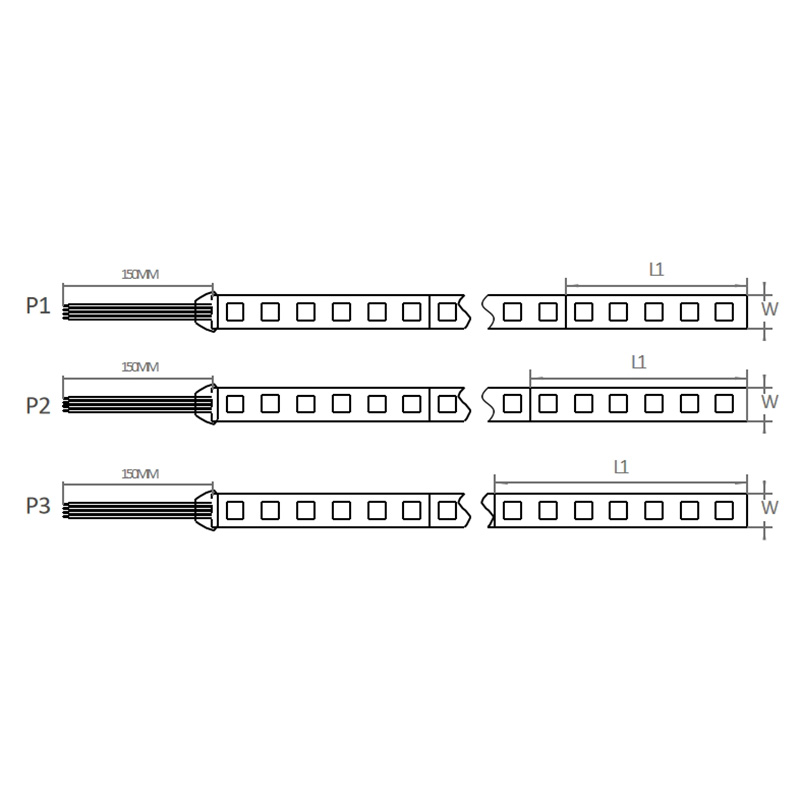

CUTTING UNIT

WIDTH

LENGTH

MAX LENGTH

IP RATING

KVG2430RGB-W10-5M

RGB

250~350

7.2W

P1: 166.7mm/5LEDS

10mm

5M

8M

IP20IP44IP66 IP67IP68

KVG2448RGB-W10-5M

RGB

400~500

9.6W

P2: 125mm/6LEDS

10mm

5M

5M

IP20IP44IP66 IP67IP68

KVG2456RGB-W10-5M

RGB

450~550

9.6W

P3: 125mm/7LEDS

10mm

5M

5M

IP20IP44IP66 IP67IP68

KVG2460RGB-W10-5M

RGB

500~600

12W

P2: 100mm/6LEDS

10mm

5M

3M

IP20IP44IP66 IP67IP68
