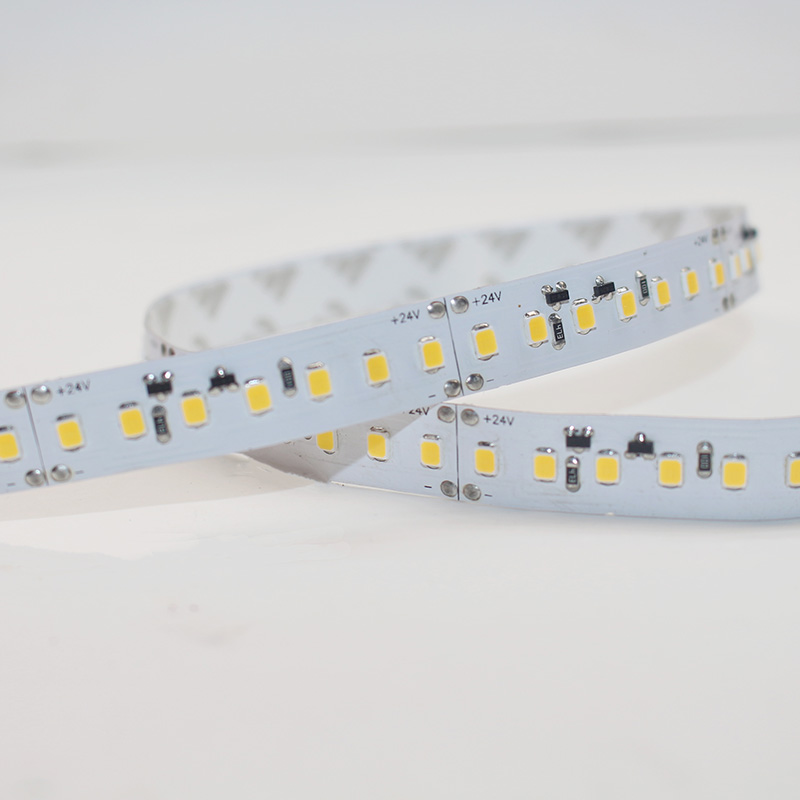

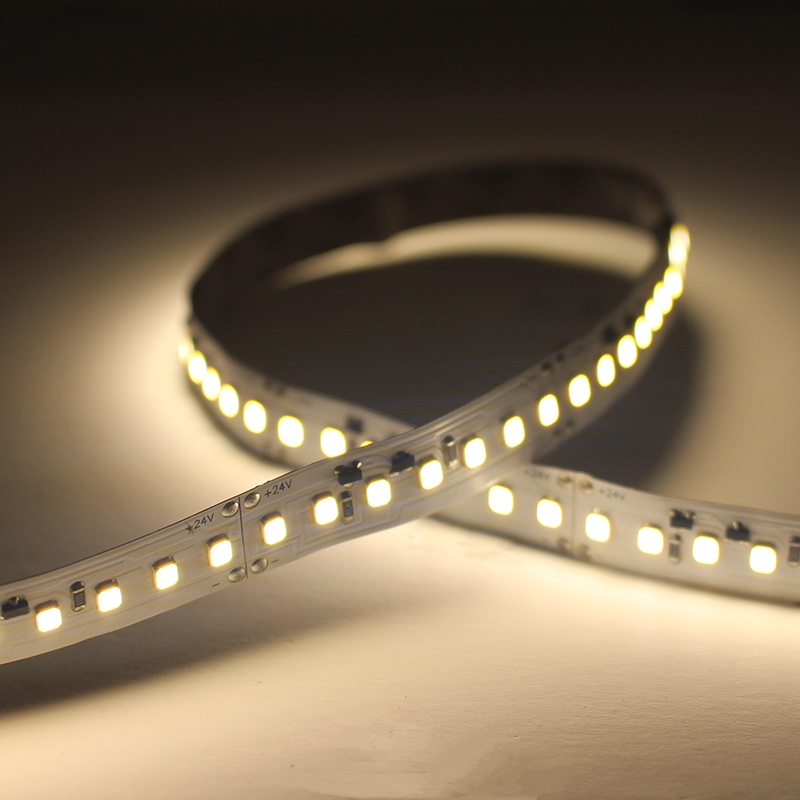

HIGH LUMINANCE FLEXIBLE RIBBON LIGHTS

24V CONSTANT CURRENT, 2835 SINGLE COLOR LEDS

Key Features

24V constant current strip, using high quality LED, large chip size, high brightness, low light decay, high light efficiency;

With special steady current chip, special circuit design is adopted to ensure the uniformity of light output of each LED and overcome the common LED strip voltage drop problem (the brightness of common LED light strip gradually decline along with

increases with the length of the product), in addition, to reduce impact from LED driver and improve LED lifespan;

Low-voltage LED, 8LED/group, luminous efficiency increased by 30%, super high light efficiency, light efficiency up to 200LM/W;

It can be used as the main lighting with various profiles and protection grades. It is suitable for use in supermarkets, libraries, shopping malls, etc.



Parameter

MODEL NO.

LED COLOUR

LUMEN/M

WATT/M

CUTTING UNIT

WIDTH

LENGTH

MAX LENGTH

IP RATING

KCC2464WW~CW-W12-5M

WW~CW

700~900

3.84W

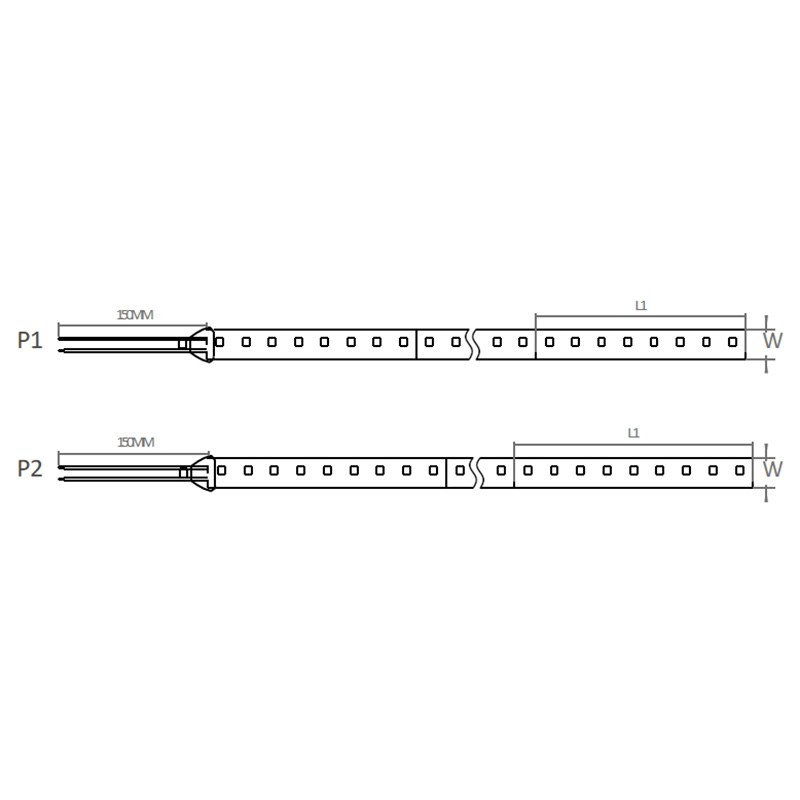

P1: 125mm/8LEDS

12mm

5M

20M

IP20IP44 IP66

IP67IP68

KCC2490WW~CW-W12-5M

WW~CW

1000~1100

4.8W

P2: 100mm/9LEDS

12mm

5M

10M

IP20IP44 IP66

IP67IP68

KCC2496WW~CW-W12-5M

WW~CW

1100~1300

5.76W

P1: 83.3mm/8LEDS

12mm

5M

15M

IP20IP44 IP66

IP67IP68

KCC24160WW~CW-W12-5M

WW~CW

1700~1900

9.6W

P1: 50mm/8LEDS

12mm

5M

12M

IP20IP44 IP66

IP67IP68

KCC24240WW~CW-W12-5M

WW~CW

2500~2700

14.4W

P1: 33.3mm/8LEDS

12mm

5M

10M

IP20IP44 IP66

IP67IP68
