Key Features
24V constant voltage,Using high quality 2016 LED, with big size chip, high brightness, low light decay;
Suitable for use in confined space and some occations with a certain brightness requirment,no heat sink;
Wider luminous surface even light output,no dark area;Suitable for higher brightness requirements of alternative lighting,direct lighting occasion.

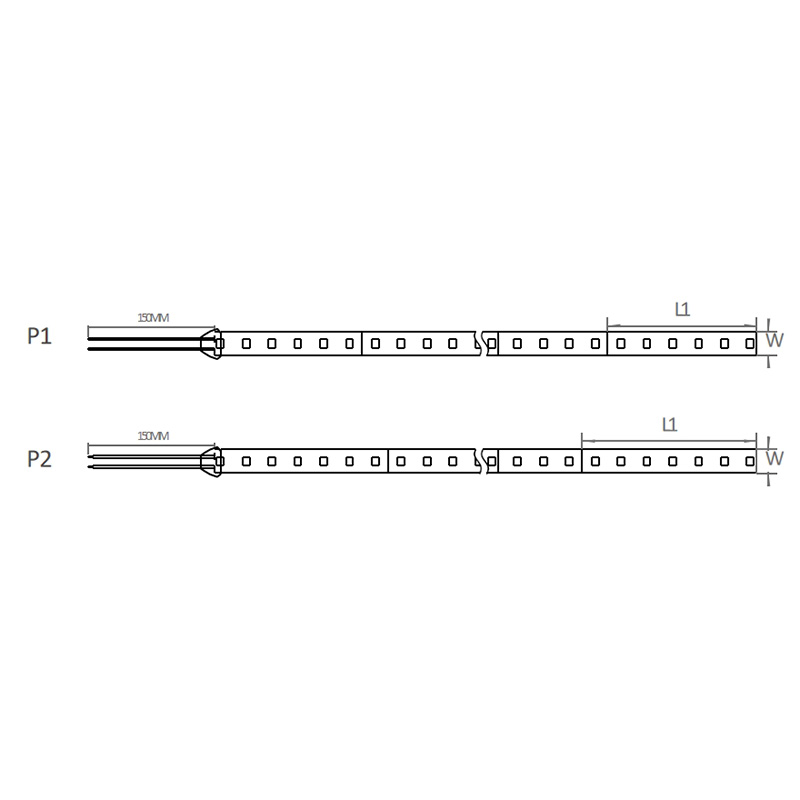

MODEL NO. | LED COLOUR | LUMEN/M | WATT/M | CUTTING UNIT | WIDTH | LENGTH | MAX LENGTH | IP RATING |
KVJ24140WW~CW-W6/8-5M | WW~CW | 1100~1200 | 9.6W | P2: 50mm/7LEDS | 6/8mm | 5M | 6M/8M | IP20、IP44、 IP66 IP67、IP68 |
KVJ24168WW~CW-W8/10-5M | WW~CW | 1200~1400 | 11.52W | P2: 41.7mm/7LEDS | 8/10mm | 5M | 8M/10M |
IP20、IP44、 IP66 IP67、IP68 |
KVJ24180WW~CW-W6/8/10-5M | WW~CW | 1300~1500 | 14.4W | P1: 33.3mm/6LEDS | 6/8/10mm | 5M | 5M/6M/8M |
IP20、IP44、 IP66 IP67、IP68 |
KVJ24196WW~CW-W6/8/10-5M | WW~CW | 1500~1700 | 13.44W | P2: 35.71mm/7LEDS | 6/8/10mm | 5M | 5M/6M/8M |
IP20、IP44、 IP66 IP67、IP68 |
KVJ24210WW~CW-W6/8/10-5M | WW~CW | 1600~1800 | 14.4W | P2: 33.3mm/7LEDS | 6/8/10mm | 5M | 4M/5M/6M |
IP20、IP44、 IP66 IP67、IP68 |
KVJ24238WW~CW-W6/8/10-5M | WW~CW | 1800~2000 | 16.32W | P2: 29.41mm/7LEDS | 6/8/10mm | 5M | 4M/5M/6M |
IP20、IP44、 IP66 IP67、IP68 |
