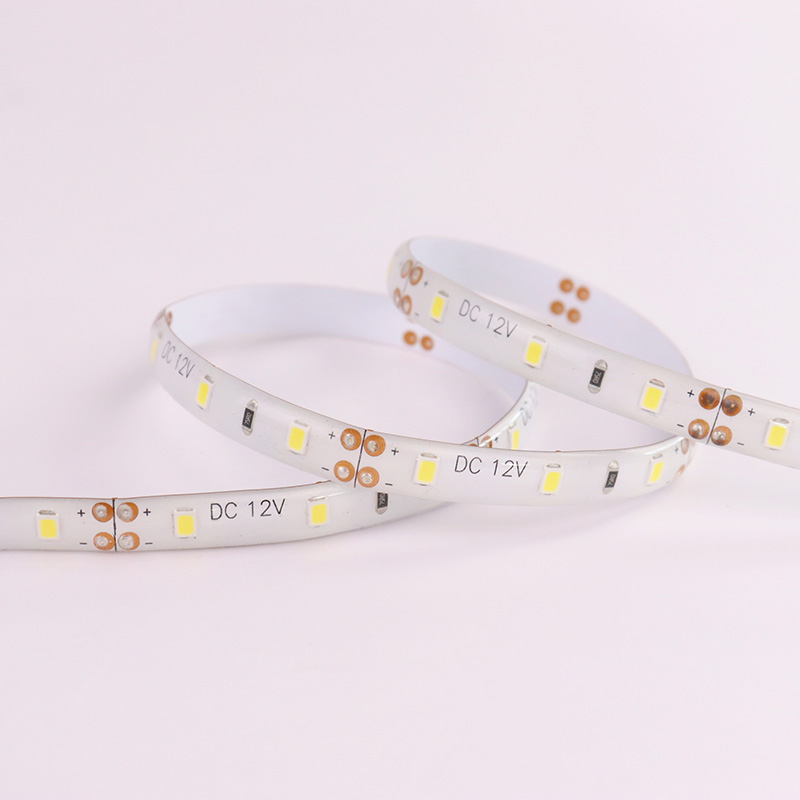

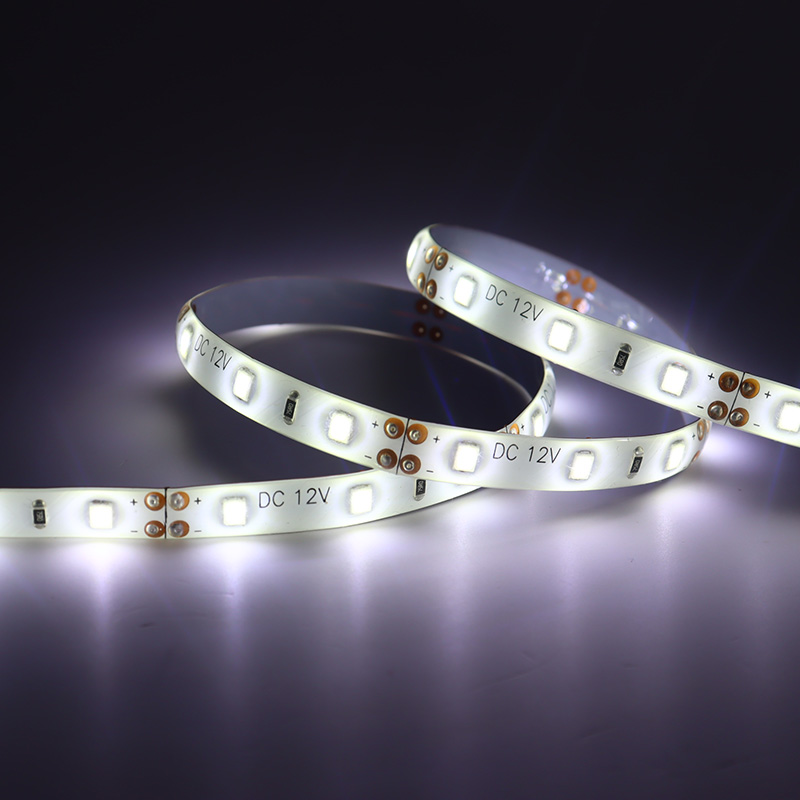

STANDARD FLEXIBLE RIBBON LIGHTS

12V CONSTANT VOLTAGE, 2835 SINGLE COLOR LEDS

Key Features
12V constant voltage,Tough lead frame is adopted to overcome the problem that the original 2835 lamp bead is easy to break, excellent alternative to 5050 sized LED;high cost -effective;
60LEDs/M,Suitable for use in open space of air circulation with certain brightness requirment of lighting occasions, no need to
mount the heat sink;
120-240LEDs/M,Suitable for use in open space of air circulation, with a certain brightness requirment of lighting occasions, no need to mount the heat sink, must ensure that temperature of strip should be below 70℃ after installation, our optional portable temperature tester is available.

Parameter

MODEL NO.

LED COLOUR

LUMEN/M

WATT/M

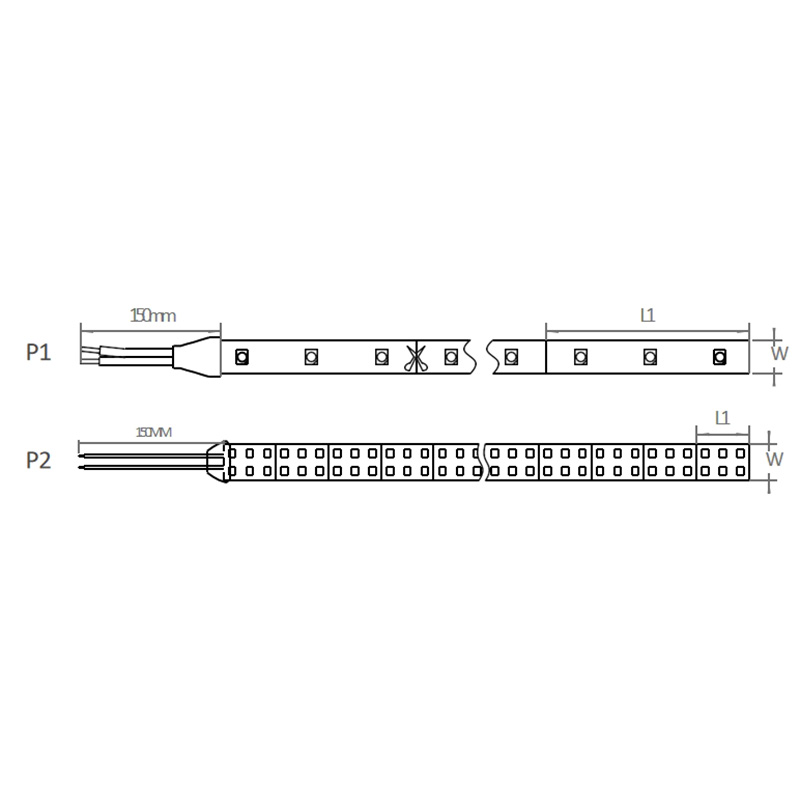

CUTTING UNIT

WIDTH

LENGTH

MAX LENGTH

IP RATING

KVC1230WW~CW-W8-5M

WW~CW

400~500

4.8W

P1: 100mm/3LEDS

8mm

5M

6M

IP20IP44IP66 IP67IP68

KVC1260WW~CW-W8/10-5M

WW~CW

900~1100

9.6W

P1: 50mm/3LEDS

8/10mm

5M

5M/6M

IP20IP44IP66 IP67IP68

KVC12120WW~CW-W8/10-5M

WW~CW

1800~2000

19.2W

P1: 25mm/3LEDS

8/10mm

5M

2M/4M

IP20IP44

KVC12180WW~CW-W8/10-5M

WW~CW

2800~3000

28.8W

P1: 16.67mm/3LEDS

8/10mm

5M

2M/3M

IP20IP44

KVC12240WW~CW-W8/10-5M

WW~CW

3700~4000

38.4W

P1: 12.5mm/3LEDS

8/10mm

5M

1M/2M

IP20IP44

KVC12240WW~CW-W15-5M

WW~CW

3700~4000

38.4W

P2: 25mm/6LEDS

15mm

5M

3M

IP20IP44
