Key Features

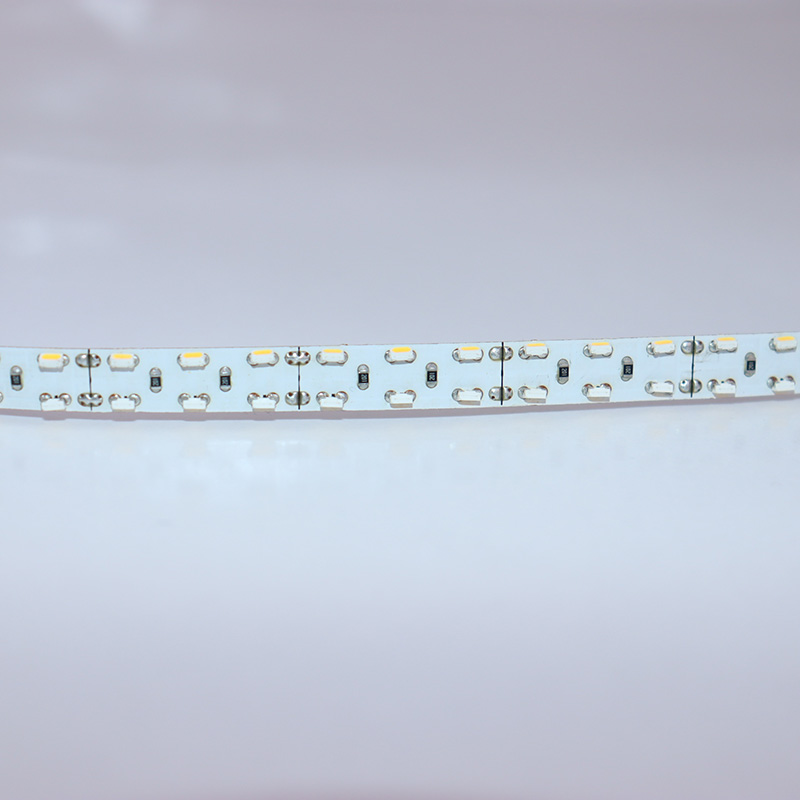

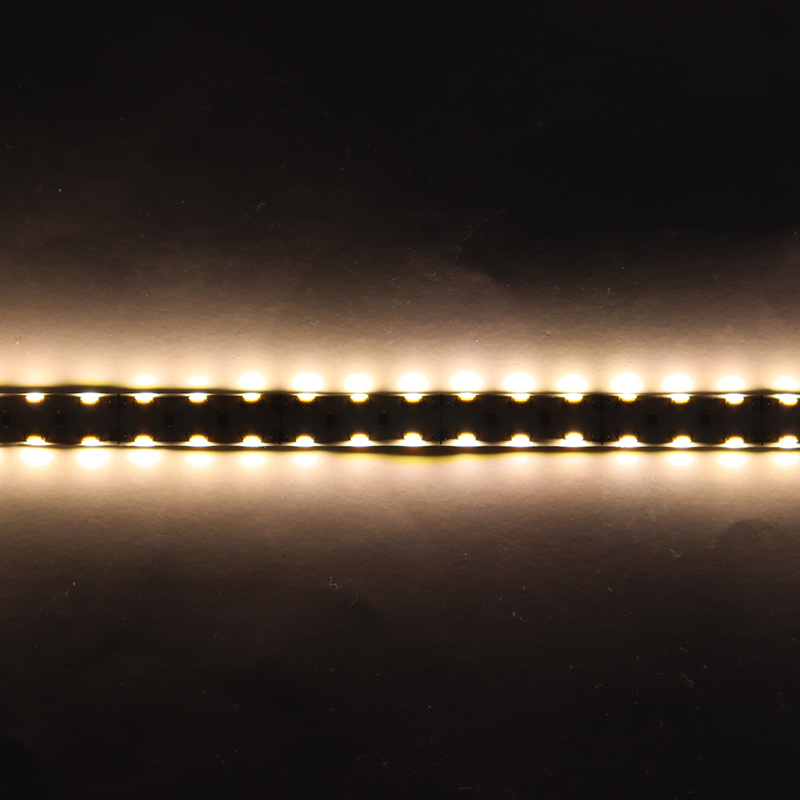

12V constant voltage, using double side view LED, special emitted light angle;
suitable for the occations that the mounting surface is perpendicular to the illuminated face ,and it also fit many cases with edge
-lit purpse lighting.

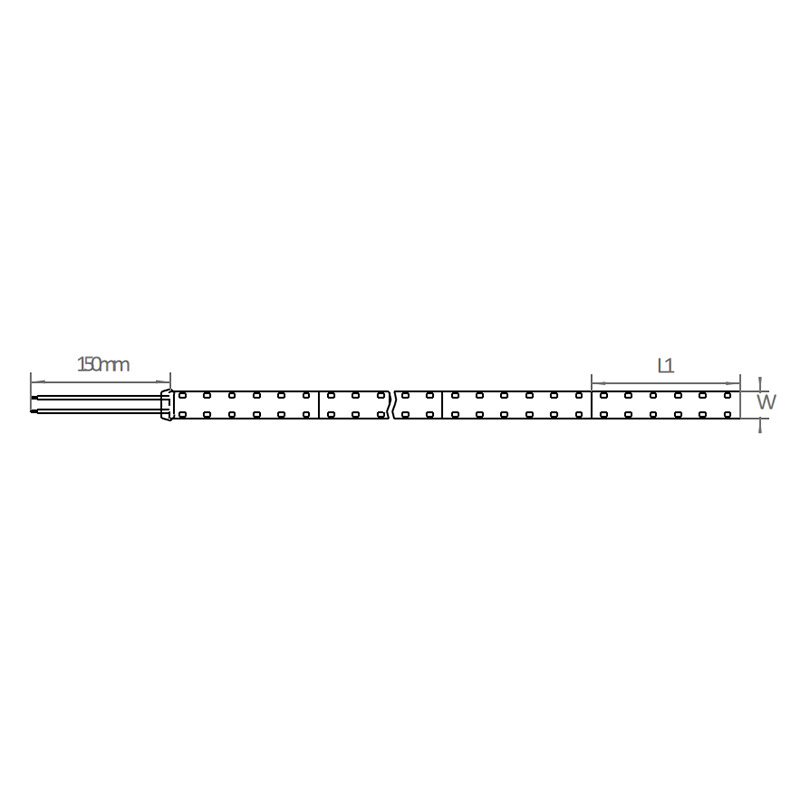

MODEL NO. | LED COLOUR | LUMEN/M | WATT/M | CUTTING UNIT | WIDTH | LENGTH | MAX LENGTH | IP RATING |
KVE12120WW~CW-W6-5M | WW~CW | 900~1100 | 9.6W | 50mm/6LEDS | 6mm | 5M | 5M | IP20、IP44、IP66 IP67、IP68 |
KVE12180WW~CW-W6-5M | WW~CW | 1300~1500 | 14.4W | 33.3mm/6LEDS | 6mm | 5M | 3M |
IP20、IP44、IP66 IP67、IP68 |
KVE12240WW~CW-W10-5M | WW~CW | 1800~2000 | 19.2W | 25mm/6LEDS | 10mm | 5M | 3M | IP20、IP44 |
