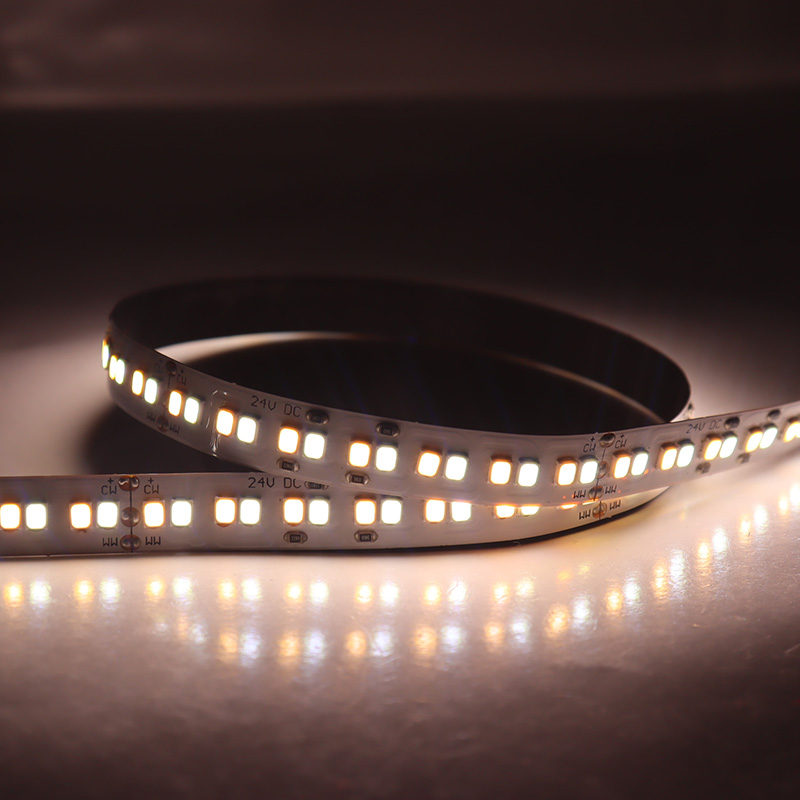

CCT ADJUSTABLE FLEXIBLE RIBBON LIGHTS

24V CONSTANT VOLTAGE 2835 3 LINES CCT ADJUSTABLE

Key Features

24V CCT,colour adjustable, Tough lead frame is adopted to overcome the problem that the original 2835 lamp bead is easy to break, excellent alternative to 5050 sized LED;high cost -effective;

Conventional 3line dimming design, With unique mixed ranging of LEDs in warm white & cool white, red & white, white & blue, when adjusting the color temperature/dimming, the color temperature/color changing is uniformed without color spots, stepless with excellent light output effect;

The color temperature and brightness can be adjusted simultaneously with the controller, and can be adjusted according to the user's mood, hobby, surrounding environment, atmosphere and seasonal changes;

Widely applied in the bars, bedrooms, dinning rooms, etc. as mood lighting, and display cabinets (red/white mixing is specially fit for displaying the fresh red items, like beef, tomatoes), etc.as display lighting.


Parameter

MODEL NO.

LED COLOUR

LUMEN/M

WATT/M

CUTTING UNIT

WIDTH

LENGTH

MAX LENGTH

IP RATING

KVC2456WW/CW-W8/10-5M-AT

WW/CW

400~500

3.84W/3.84W

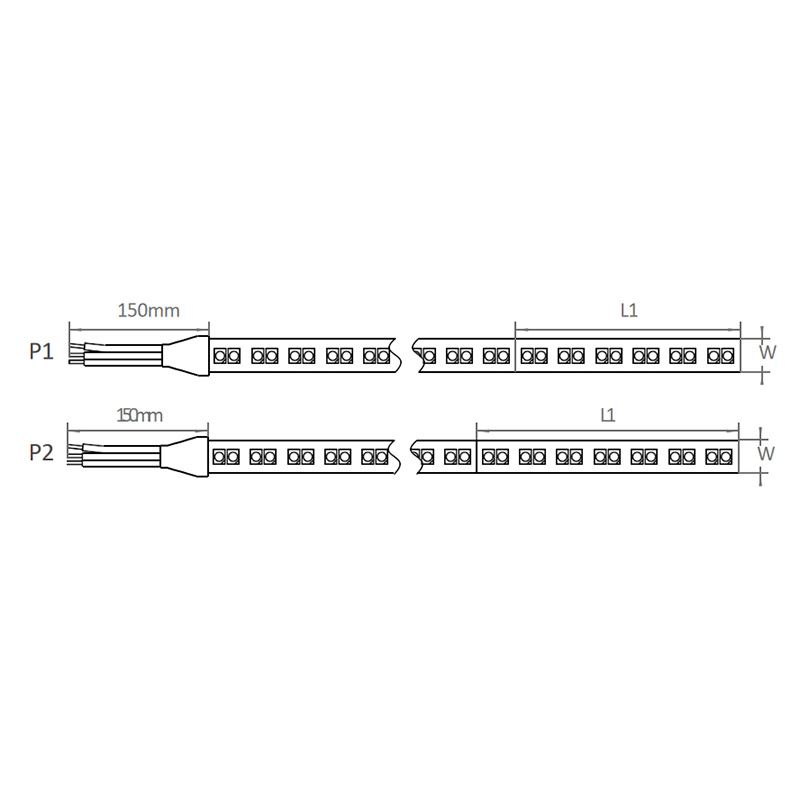

P2: 125mm/7LEDS

8/10mm

5M

12M/15M

IP20IP44 IP66

IP67IP68

KVC2460WW/CW-W8/10-5M-AT

WW/CW

400~500

4.8W/4.8W

P1: 100mm/6LEDS

8/10mm

5M

10M/12M

IP20IP44 IP66

IP67IP68

KVC2470WW/CW-W8/10-5M-AT

WW/CW

400~500

4.8W/4.8W

P2: 100mm/7LEDS

8/10mm

5M

10M/12M

IP20IP44 IP66

IP67IP68

KVC24112WW/CW-W8/10-5M-AT

WW/CW

700~900

7.68W/7.68W

P2: 62.5mm/7LEDS

8/10mm

5M

5M/8M

IP20IP44 IP66

IP67IP68

KVC24120WW/CW-W8/10-5M-AT

WW/CW

800~1000

9.6W/9.6W

P1: 50mm/6LEDS

8/10mm

5M

5M/8M

IP20IP44 IP66

IP67IP68
