Key Features

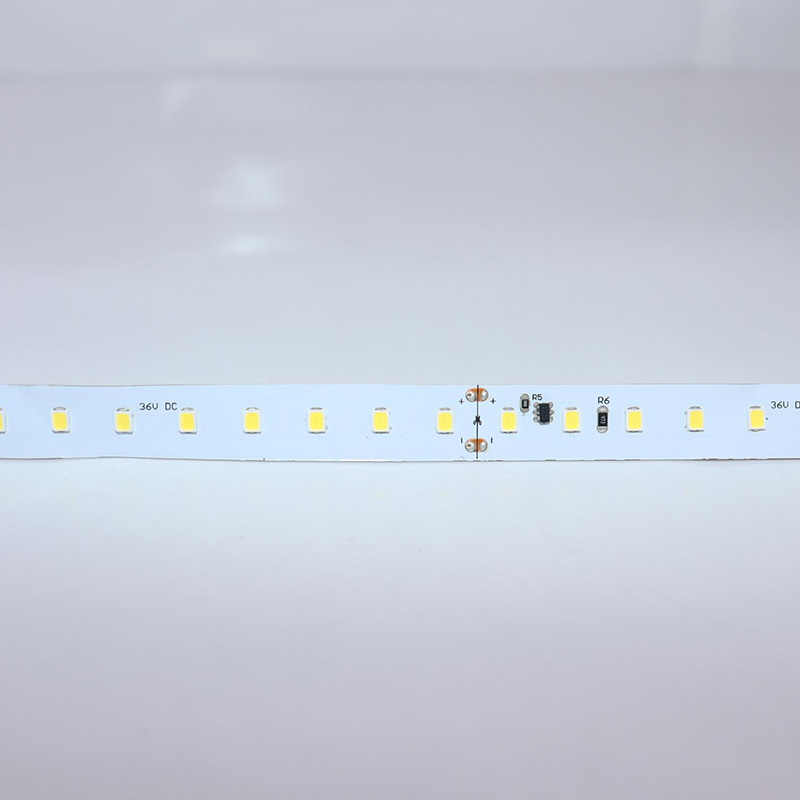

1.24V, 36V Constant current, using high-intensity 2835 LED to overcome the problem of easy breakage of the original 2835 light source;
2. The product length is 30-40M respectively. If the 3OZ FPCB is used, the maximum length is 60-80M, no need to splicing multiple
times. With the extrusion process and aluminum profile, the high-voltage LED strip is perfectly replaced, which is safer to use; Widely used in buildings, landscape lighting, engineering renovation, architectural contour lighting and other occasions.
MODEL NO. | LED COLOUR | LUMEN/M | WATT/M | CUTTING UNIT | WIDTH | LENGTH | MAX LENGTH | IP RATING |

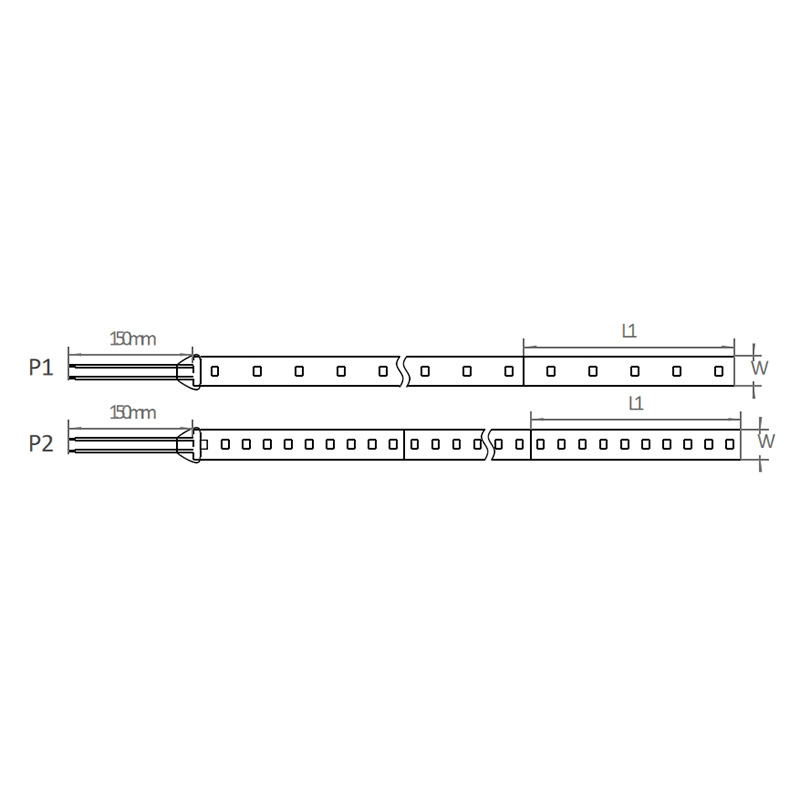

KCC2450WW~CW-W12-20M | WW~CW | 400~500 | 4.8W | P1: 100mm/5LEDS | 12mm | 20M | 30M | IP20、IP44、IP66 IP67、IP68 |
KCC3660WW~CW-W12-20M | WW~CW | 400~550 | 4.32W | P2: 167mm/10LEDS | 12mm | 20M | 40M |
IP20、IP44、IP66 IP67、IP68 |
KCC36100WW~CW-W12-20M | WW~CW | 800~1000 | 7.2W | P2: 100mm/10LEDS | 12mm | 20M | 30M |
IP20、IP44、IP66 IP67、IP68 |
