If the output gets over 33W upper limit, the output current will be limited in order to fall back to limit. In order to restore set-current value, cut off the power supply and reduce output load under maximum threshold then re-connect the power supply.
Input voltage 48Vdc.

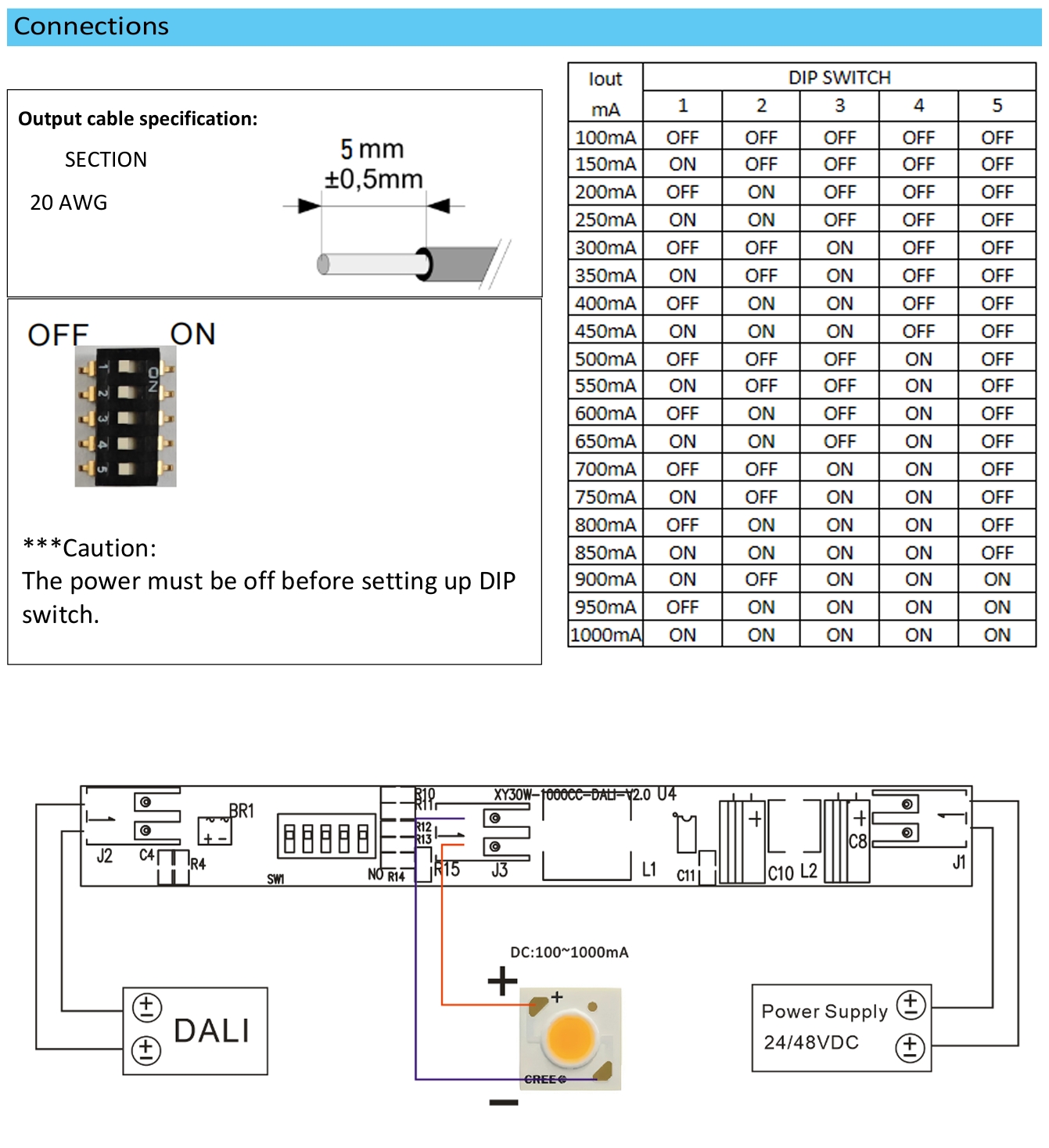

Output constant current could be adjustable from 100mA to 1000mA by DIP switch
No polarized requested for power supply input
Output operating voltage 2Vdc to 43Vdc
DALI-2 opt isolated input certified according to IEC 62386.
Protection: short circuit, over voltage, over temperature
Dimming way DALI Dimming range:1%-100%
